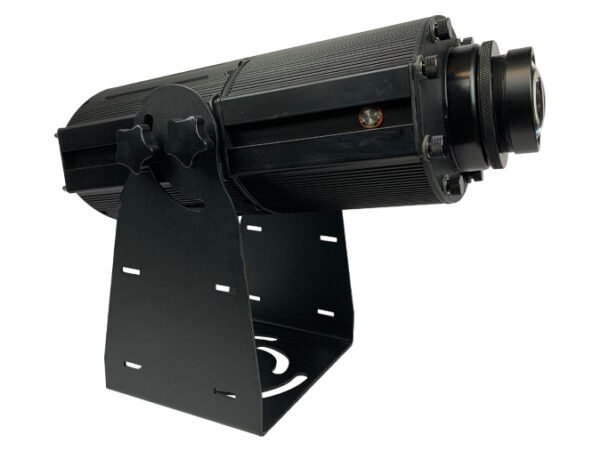

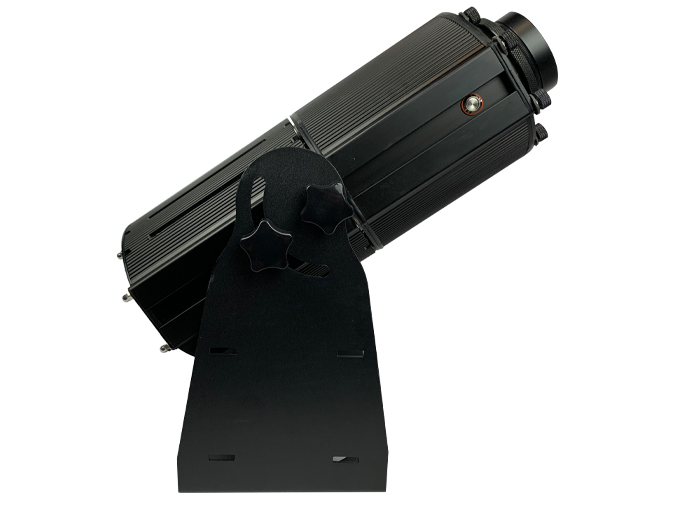

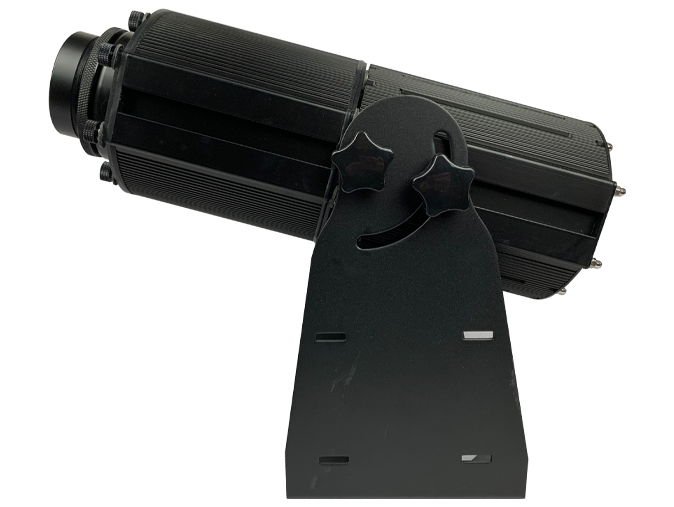

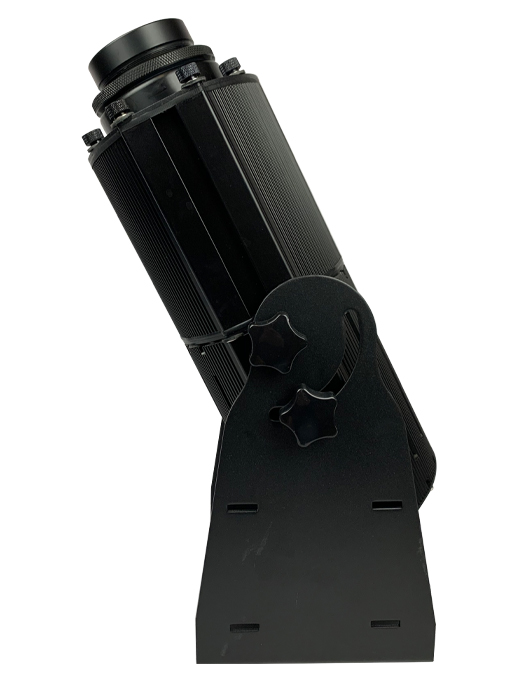

GL100 Gen II LED Gobo Projector

Encased in an IP65 enclosure this fully weatherised fixture is perfect for your outdoor evening installation for projections 10+ metres, but can also be ideal for brighter indoor environments.

The high quality optical system produces a crisp vivid gobo image and the flat field gives you a crystal clear projection right to the edge.

All come with your choice of fixed lens to suit your location and built in gobo rotation that can be easily turned on or off using the side button.

Features

High quality optical system offers sharp image quality
IP65 suitable for indoor & outdoor use
3 fixed lens options available (extra wide lens also available on request)
Built in rotation
Rear cooling fins and waterproof fan protected by 1.5mm mesh
Available in either black
Cool white LED as standard. Warm white available upon request

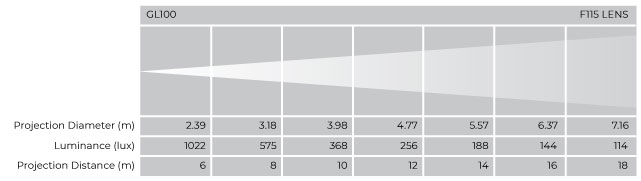

fixture in use Specifications Image Size and Brightness downloads

Event Launch by Studio Messa | Grand Lighting GL100 fitted with custom B&W glass gobo and blue dichroic filter

Brisbane Comedy Festival at Brisbane Powerhouse | Grand Lighting GL100 fitted with custom B&W glass gobos

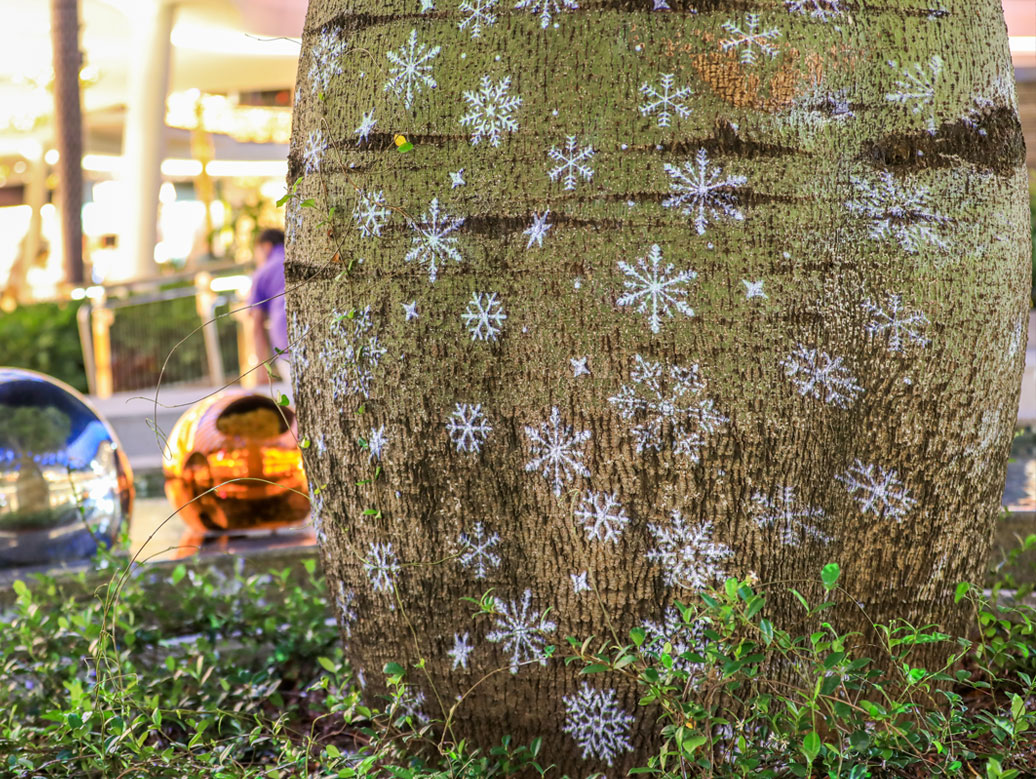

Pacific Fair Christmas Installation | Grand Lighting GL100 fitted with stock B&W glass gobos

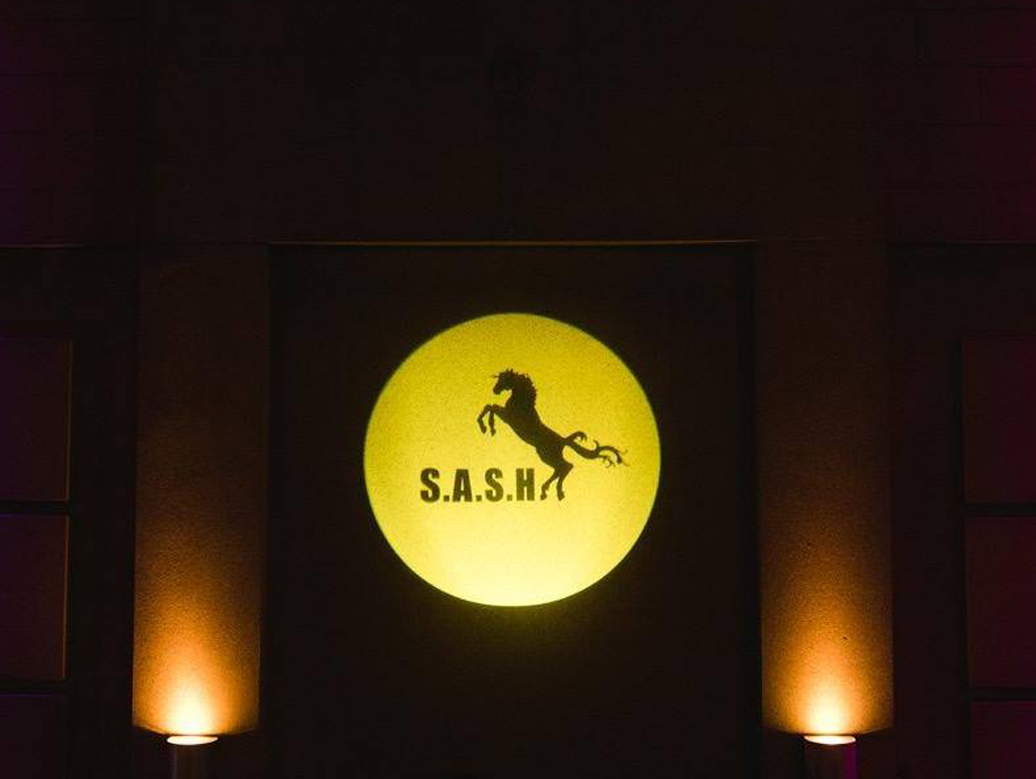

SASH Nightclub | Grand Lighting GL100 with speciality built lens and keystone corrected custom B&W glass gobo with yellow dichroic filter

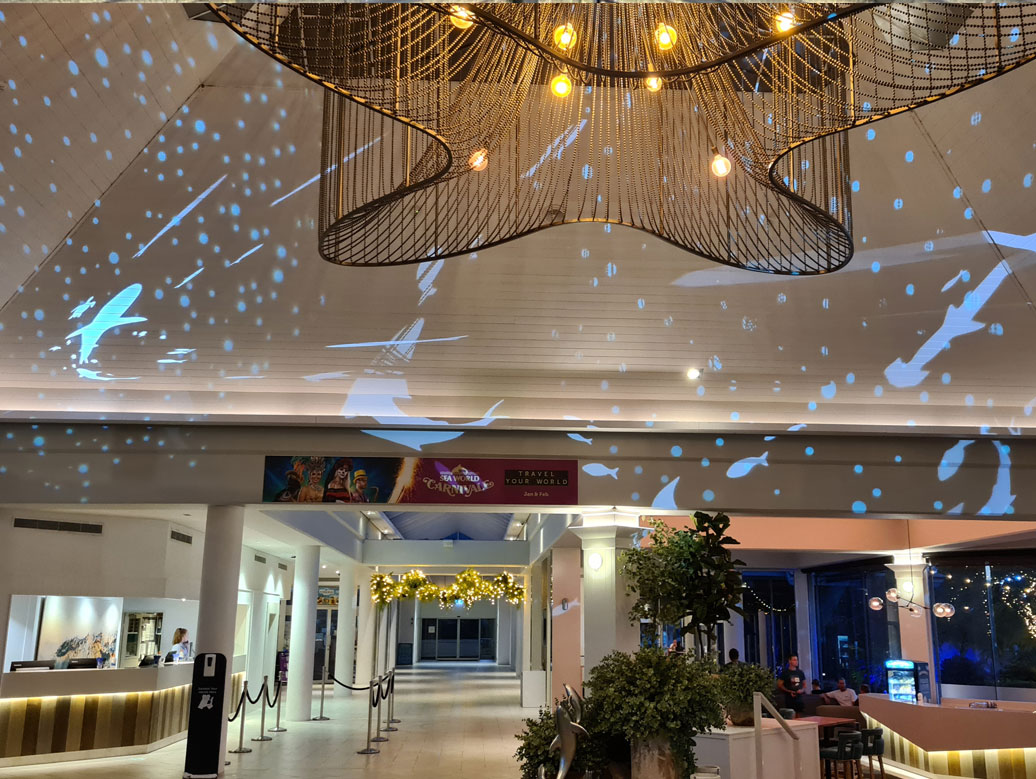

Seaworld Resort entrance | Grand Lighting GL100 fitted with custom B&W glass gobos and blue dichroic filters

Timezone Surfers Paradise | Grand Lighting GL100 fitted with custom full colour glass gobo

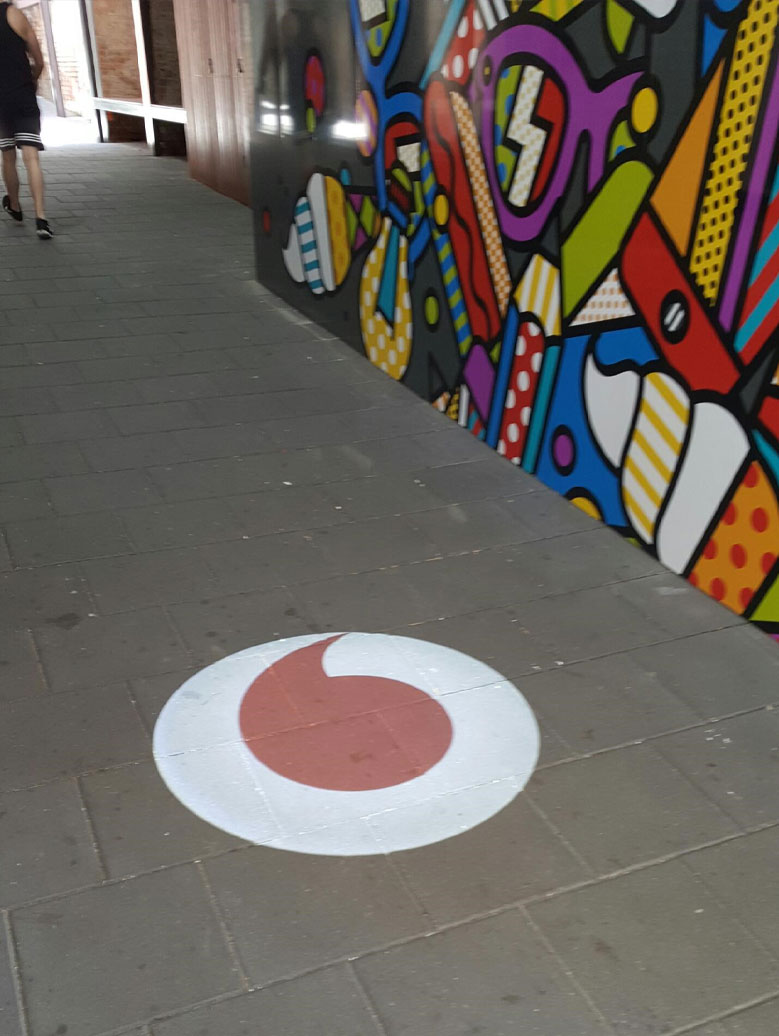

Vodafone Laneway | Recessed ceiling projection | Grand Lighting GL100 fitted with custom built lens and full colour glass gobo

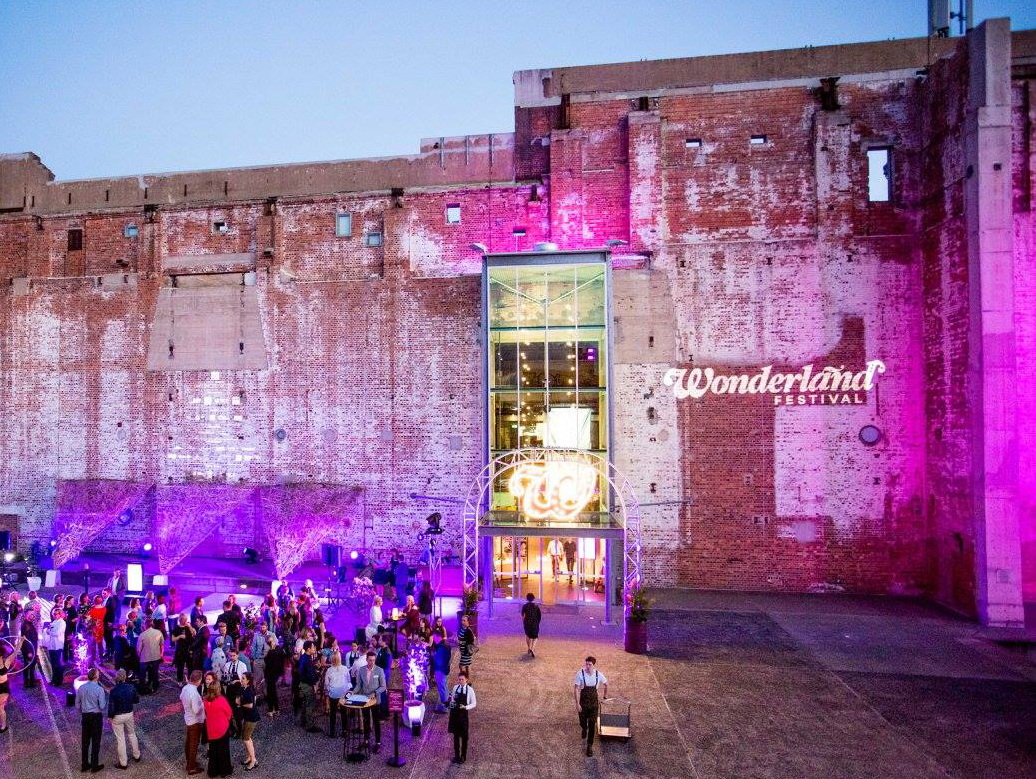

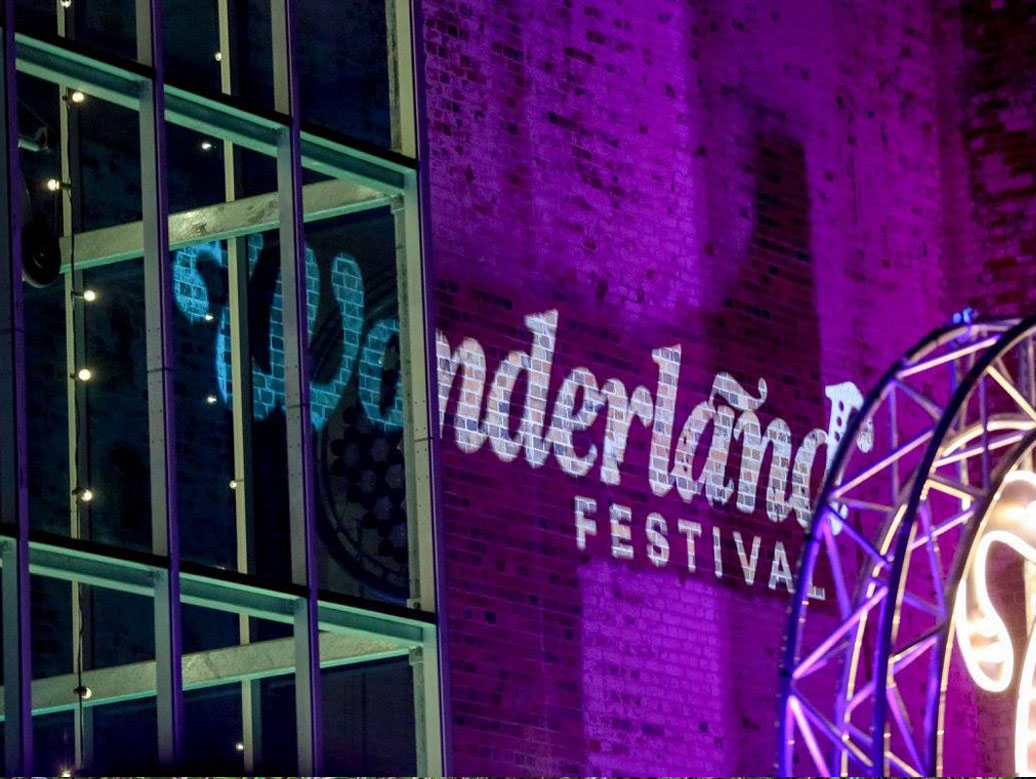

Wonderland Festival | Brisbane Powerhouse | Grand Lighting GL100 fitted with custom B&W glass gobo

physical dimensions

Length (excluding lens): 330mm
Length (including lens): approx. 400mm
Width (with knobs): 250mm
Body Height: 140mm
Height (with base): 300mm
Weight: 5.6kg
External power supply: 220mm x 60mm x 40mm

electrical

External power supply IP65 Meanwell HLG-120H-24AB
Input Voltage: 100-240V AC
Average power consumption: 100 watts

Gobos

Outside diameter: 66mm (+0/-.03mm)
Maximum image diameter: 48mm (for flat field crisp projection eg logos) / 50mm (for soft edges, eg: breakup images)
Maximum thickness: up to 5.0mm

Optics

Light Source: 100W LED Capsule
Cool white 7000k as standard / warm white 3000k available on request
LED Lifetime: 50,000 hours
* figure obtained under manufacture’s test conditions
